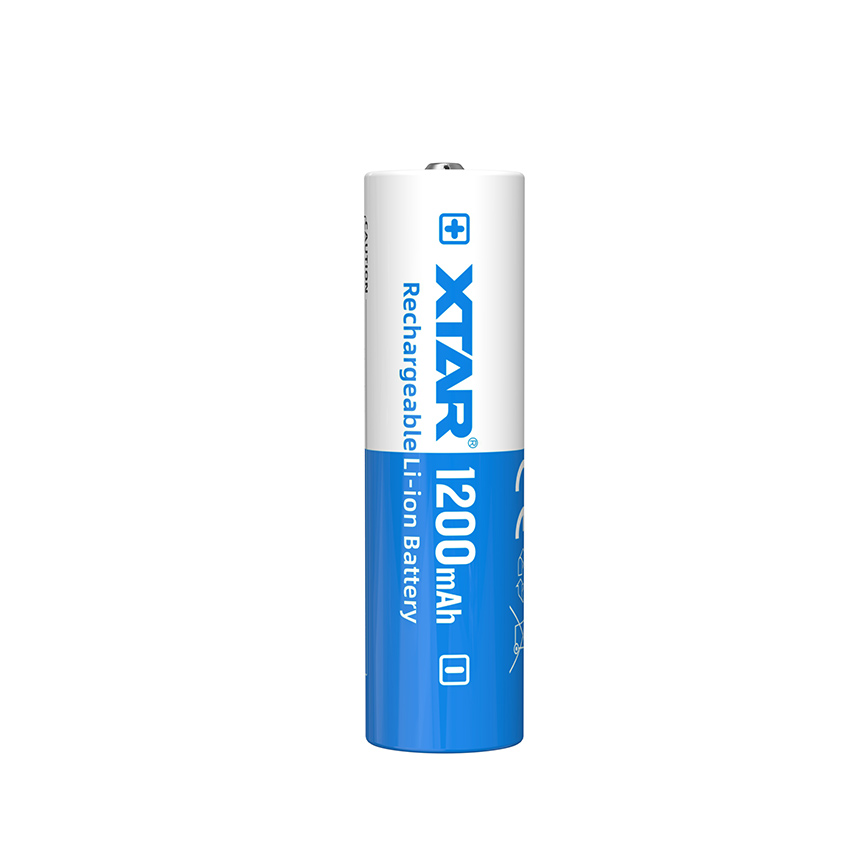

Li-ion Battery Xtar 14500 1200mAh with protection
Specification
- nominal voltage: 3.7V
- capacity: 1200mAh
- dimensions: 14.3mm x 50.5mm
- protected against: discharge, overcharge, overload, short circuit
Lithium-ion battery Xtar 14500 with a capacity of 1200mAh. Electronically protected against overcharging, excessive discharging, overloading and short circuiting.
| Product data | |
| nominal voltage | 3.7V |
| capacity | 1200mAh |
| maximum recommended charging current | 0.5A |
| maximum recommended discharging current | 2A |
| current protection activation threshold | 2.5A |
| maximum charging voltage | 4.2V |
| dimensions | diameter: 14.3mm; height: 50.5mm |
